AIRTAC CMSG-020 2-wire IP65 with 2m cable CMS series reed sensor

Specifications
Model: CMSG-020
Power supply voltage: 5V ~ 240V AC/DC
Switching current: 100mA
Contact capacity: 10W Max.
Current consumption: N/A
Internal voltage drop: 2.5V Max. @100mA DC
Leakage current: N/A
Switching frequency: 200Hz
Impact resistance: 50G
Circuit protection: N/A
Operating Temp.: -10C ~ 70C
Enclosure: IP64
Standard: CE marking, RoHS

Instruction
1. Sensor shall not fall down or bear great impact when it is installed.
2. The wire of the Sensor shall not move with the action of cylinder.

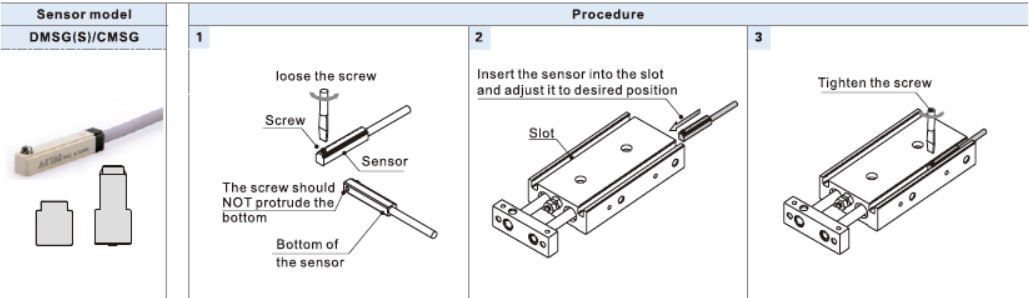

3. Clamping torque shall be within the allowable scope when the Sensor is installed(0.15~0.2Nm).
4. Sensor shall be installed in the middle position of the action scope.
5. Sensor wiring:
A. The wire is unable to bear repetitive torsion and tension, Please wire an external load before switch the power on.
B. No poor insulation in wire.
C. Do not wire with power line, high voltage line or use one wiring pipe.
D. Pleas wire the circuit correctly base on the circuit diagram.
6. Execute scheduled maintenance by the following guidelines:
A. Make sure the sensor is firmly fixed.
B. Make sure the wire is intact.
C. Make sure that LED indicate the movement of cylinder correctly.
7. Application of environment:
A. It is Not allow to use the sensor in the environment with explosive gas.
B. Magnetic sensor shall not be used in the environment with external magnetism.
C. Magnetic sensor shall not be used in the environment that is always eroded by water.
D. Magnetic sensor shall not be used in the environment with oil moisture or chemical substance.
E. Magnetic sensor shall not be used in the environment with periodically changing temperature.
F. Magnetic sensor shall not be used in the environment with excessively great impact.
G. Magnetic sensor shall not be used in the environment with sources of electrical pulse.
H. Avoid the environment with accumulated iron power and dense magnetic objects.
